| Radar type/Frequency band | FMCW* Doppler 60 GHz V-Band surface velocity radar sensor | |
| Measurement range | 0.05 m/s to 15 m/s | |
| Output rate | 1 Hz (1 measurement/second) | |
| Accuracy | 1% of measured value (in a range from 0.02 m/s… 4.50 m/s (0.0656 ft/s… 14.763 ft/s)) and 2% of measured value (in a range from 4.50 m/s… 15 m/s (14.763 ft/s… 49.212 ft/s)) |
|
| Resolution | 1 mm/s (0.003 ft/s) | |
| Blanking distance | 0.1 m (3.937 in) | |
| Supply voltage (range) | 10… 30 VDC | |
| Power consumption at 12V | Typical ~50 mA; Wi-Fi activated: ~90 mA (incl. optional upgrade to Q) | |
| Beam angle | 8° azimuth; 12° elevation | |
| Ingress protection | IP68 | |
| Communication and interfaces | SDI-12, Modbus, Wi-Fi | |
| Operating temperature range | -40… +80 °C (-40… 176 °F) | |
| Humidity range | 0… 100 % RH, non-condensing | |
| Dimensions and weight | HyQuant sensor with backplate: LxWxH: 160 x 97 x 91 mm, 1.15 kg (6.29 x 3.81 x 3.58 in, 2.53 lb) Packaged dimensions: LxWxH: 300 x 300 x 187 mm, 2.5 kg (11.81 x 11.81 x 7.36 in, 5.51 lb) |
|

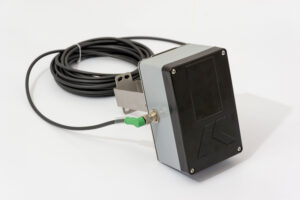

| Signal connector | M12 8-pin | |
| Materials | Housing: powder-coated aluminium; cover/radome: HDPE | |
| Compliance | CE, FCC Class B, UL, RoHS | |
*FMCW: Frequency Modulated Continuous Wave

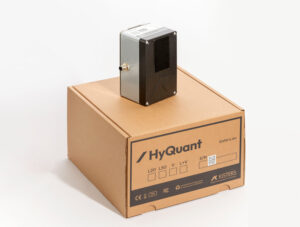

HyQuant V is KISTERS’ state-of-the-art non-contact surface velocity 60 GHz V-band Doppler radar sensor. It offers superior resolution and accuracy, with reduced power consumption, all at an appealing price point.

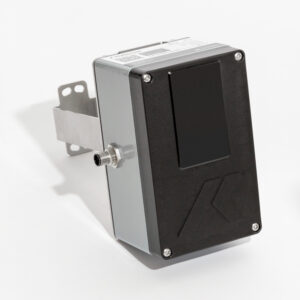

Compact design

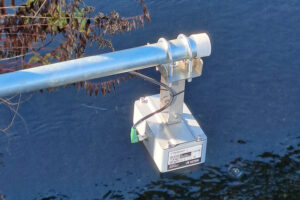

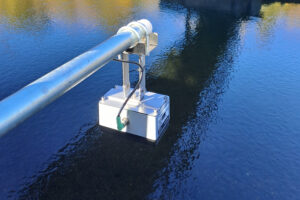

The sensor’s exceptional compactness enables effortless and swift installations. Its discrete design further deters vandalism and enables flexible and easy installations in various support structures such as bridges and booms located in narrow and wide water bodies, urban and remote applications.
Specially designed antenna
Beam inclination achieved by design. This simplifies sensor positioning, requiring only parallel mounting to the water surface for optimal placement. Small antennas, short wavelength and optimised beam width provide high resolution and accuracy across the measurement range.
Optional upgradability to L+V or Q
Upgrade to the level and velocity radar HyQuant L+V or to the discharge radar HyQuant Q, without uninstalling or returning the instrument, purchasing additional sensors and/or adapting the housing.
This radar system seamlessly adapts to varied monitoring environments, thanks to adjustable filter settings easily customised via an intuitive wizard-driven interface.
