| Measurement technology |
|
||
| Measurement principle | Fluorescence | ||
| Parameter |
|
||
| Measuring range |
|
||
| Measurement accuracy | ±5 % | ||
| Turbidity compensation | No | ||
| Data logger | No | ||
| T100 response time | 6 s | ||
| Measurement interval | 3 s | ||
| Housing material | Stainless steel (1.4571/1.4404) or titanium (3.7035) | ||
| Dimensions (L x Ø) | 171 mm x 36 mm | ~ 6.1˝ x 1.4˝ | |
| Weight | stainless steel: 0.5 kgtitanium: 0.4 kg | ~ 1.1 lbs~ 0.9 lbs | |
| Interface |
|
||
| Power consumption | typical < 1 W | ||
| Power supply | 12…24 VDC (± 10 %) | ||
| Maintenance effort | ≤ 0.5 h/month (typical) | ||
| Calibration/maintenance interval | 24 months | ||
| System compatibility | Modbus RTU | ||
| Warranty | 1 year (EU: 2 years) | US: 2 years | |
| Installation | |||
| Max. pressure | with Subconn 30 barwith fixed cable 3 barin FlowCell 1 bar, 2…4 L/min | ~ 435 psig~ 43.5 psig~ 14.5 psig, 0.5 to 1 gpm | |
| Protection type |
|
||
| Sample temperature |
|
||
| Ambient temperature |
|
||
| Storage temperature |
|
||
| Inflow velocity |
|
||

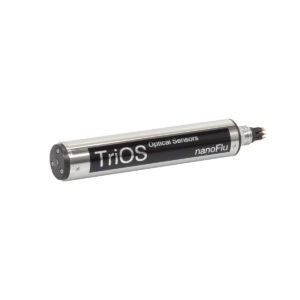

Miniature fluorometer
nanoFlu fluorometers are low-priced, submersible miniaturized fluorometers for highly precise and selective measurement of CDOM (colored dissolved organic matter, yellow substances), chlorophyll a or phycocyanin in cyanobacteria. Long-term stability of measurements is achieved by the combination of low power consumption and innovative coating of the optical window, as an energy efficient and environmentally friendly anti-fouling solution. The devices can be used in diverse applications for the monitoring of sea and river waters, as well as in drinking- and wastewater treatment systems. Internal reference signals of the high performance LEDs used for fluorescence excitation compensate aging effects and temperature influences.
