WeatherSens MP: Compact weather sensors | 0-168 mph wind speed

WeatherSens MP: Compact weather sensors | 0-168 mph wind speed

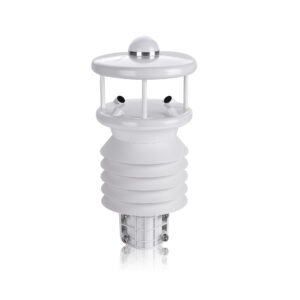

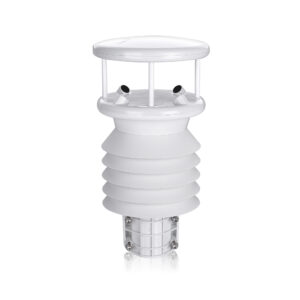

WeatherSens MP compact weather sensors deliver precise measurement of key meteorological parameters in a robust, high-quality design. Featuring ultrasonic wind measurement with no moving parts, they ensure reliable, low-maintenance performance in demanding hydromet environments.
Get a Quote or Consultation
DatasheetUser ManualQuick Installation Guide
Variants
MP500 MP650 AR200
Measures Measures Measures

  • wind speed
  • wind direction
  • temperature
  • relative humidity
  • air pressure
  • wind speed
  • wind direction
  • temperature
  • relative humidity
  • air pressure
  • solar radiation
  • wind speed
  • wind direction
H 12.13 x D 6.3 inch
(H 308 x D 160 mm)
3.09 lbs (1.4 kg)
23 mA @ 12 VDC *		 H 13.11 x D 6.3 inch
(H 333 x D 160 mm)
3.09 lbs (1.4 kg)
27 mA @ 12 VDC *		 H 7.64 x D 6.3 inch
(H 194 x D 160 mm)
2.43 lbs (1.1 kg)
20 mA @ 12 VDC *

Technical Specifications
IP Class IP66
Interfaces SDI-12 (default) / RS 485
Protocols SDI-12 V 1.3 (default) / RS 485 (MODBUS-RTU, ASCII, NMEA 0183)
Operating Voltage 10 to 30 VDC for all measuring parameters (opt. heater: 1 A@24 VDC or 24 Watt for wind speed and direction transducers)
Connector and Cable Connector M12-8pol; Cable PUR 32.8 ft (10 m) (other lengths on request)
Operating Temperature and Humidity -40 to 158 °F (-40 °C to +70 °C); 5 % to 100 % RH
Operating Measuring and Deployment Range -40 to 158 °F (-40 °C to +70 °C) (without snow accumulation and/or ice accretion)
Operating Measuring Range for Rain 32 °F to 158 °F (0 °C to +70 °C)
Temperature Control Range for Wind Speed and Direction 14 °F to 39 °F (-10 °C to +4 °C)

Parameters
Wind Speed Wind Direction Temperature Relative Humidity Air Pressure Solar Radiation
Principle Ultrasonic Ultrasonic Diode voltage Capacitive Piezoresistor Photoelectric
Range 0 to 134 mph or 167 mph
(0 to 60 m/s or 75 m/s)		 0 to 359.9° -40 to 176 °F
(-40 to +80 °C)		 0 to 100 % RH 500 to 1100 hPa 300 to 2100 nm;
0 to 2000 W/m²
Accuracy ±0.67 mph
(±0.3 m/s) or 3 %		 ±3° ±0.54 °F (±0.3 °C **)
MP300: ±0.9 °F (±0.5 °C)		 ±3 % RH
MP300: ±0.5 hPa		 ±0.3 hPa ±5 %
Resolution 0.22 mph (0.1 m/s) 0.1° 0.18 °F (0.1 °C) 0.1 % RH 0.1 hPa 0.1 W/m²
Additional Device – – – – – MPS100:

H6,3 x D3,94 inch
(H160 x D100 mm)
2,65 lbs (1.2 kg)
17 mA @ 12 VDC
* Please note: With interface RS 485 the power consumption is 20 to 30 % less. Please ask for details.
** Accuracy in measuring range 32 to 104 °F (0 to 40 °C): ±32,4 °F (±0.2 °C)
